POE SWITCH

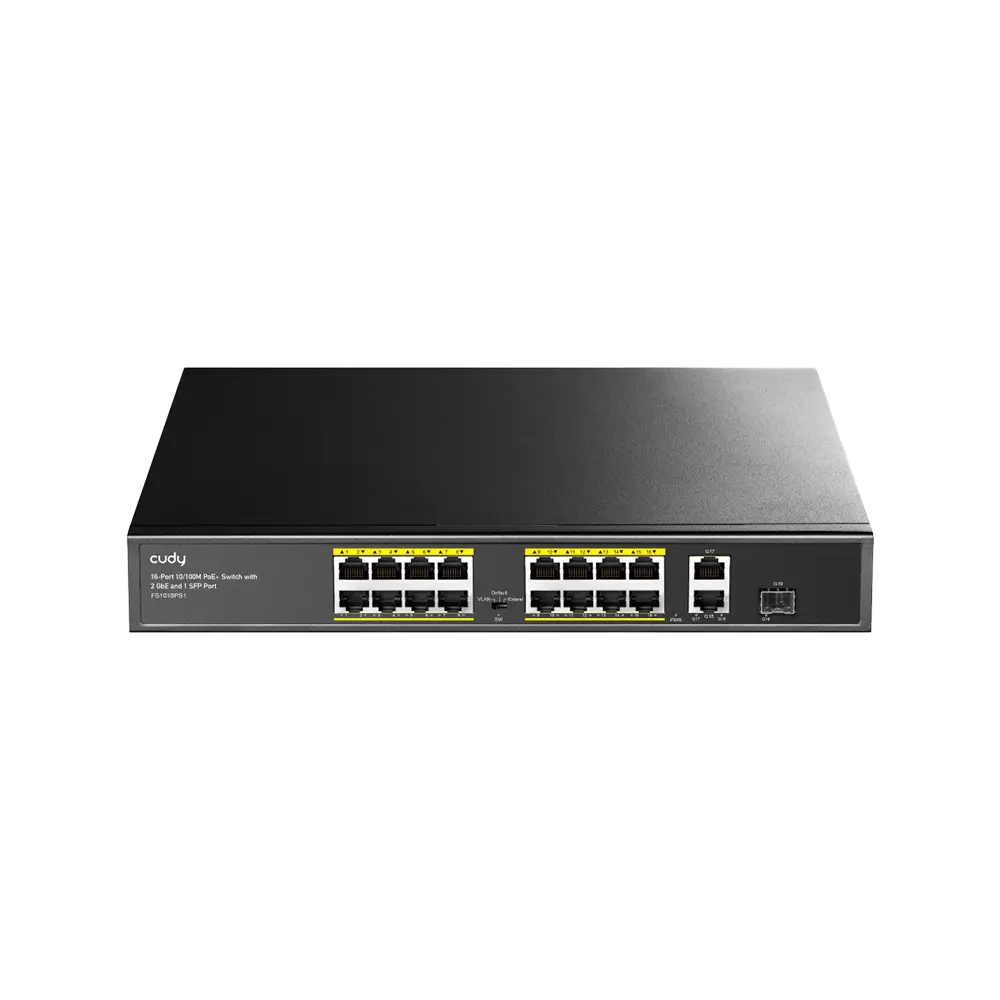

Cudy 16-Port 10/100M PoE+ Switch with 1 Gigabit Uplink and 1 Gigabit Combo SFP Port 200W FS1018PS1
5.900,00 ден
Нема конфигурирани податоци за достапност по продавници.
| Mode | FS1018PS1 | |
| Power | Power Supply | Built-in power supply |
| Voltage Range | AC100~240V | |
| Consumption | 190W for 16 PoE | |
| Ethernet | Speed | 1~16 Port: 10/100/Mbps |
| G17~G18 Port:10/100/1000Mbps | ||
| G19 Port: SFP 1.25bps | ||
| Transmission Distance | 100Meter(328ft)for RJ-45 | |
| The distance is determined by the optical module | ||
| The optical module is optional | ||
| Network Switch |
Ethenet Standard | IEEE 802.3 802.3u 802.3ab 802.3af/at |
| Switching Capacity | 7.2G | |
| Transfer Rate | 14880 pps for 10Mbps | |
| 148800 pps for 100Mbps | ||
| 1488000 pps for 1000Mbps | ||
| MAC Adsress | 4K MAC sddress table | |
| Link/ACT | On(Green) | The port is connecting |
| Blinks | The port is receiving or transmitting data. | |
| Off | The port is notl inked successfully with the device | |
| POE | On(Oranfe) | PD is connected |
| Off | No PD is connected or power forwarding fails | |
| PoE Pin Assignmnet | V (RJ45 Pin 1, 2) – (RJ45 Pin 3,6) | |
| Environment | Working Temperature | 0~40°C |
| Storage Temperature | -40~70°C | |
| Humidity Non Condesing | 0~85% | |
| Mechanical | Dimension L*W*H | 280*180*44mm |
| Color | Gray |
